New Right Angle Bi-polar SMD-LED with dome lens, KPTBDA-3216 series

By Udo Reinhold on 28. April 2014 in Allgemein

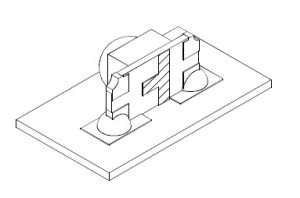

KPTBDA-3216_highKPTBDA-3216 drawing

With the KPTBDA-3216 series Kingbright offers a new right angle bi-polar SMD-LED with dome lens. The 3.2 x 1.6 mm right angle dome lens package provides a viewing angle of 30 degrees allowing a brighter intensity output and eliminating any light bleeding issues. Typical issues with side emitting LEDs when designed on arrays are light bleeding, overshadowing or dim light outputs. These issues can be resolved by using the new 3.2 x 1.6 mm right angle dome lens package.

Kingbright’s new KPTBDA-3216 bi-polar series is available in the colour combinations red/green (KPTBDA-3216SURKCGKC), red/yellow (KPTBDA-3216SURKSYKC) and red/blue (KPTBDA-3216SURKQBDC). Further colour combinations are available upon request.

This 3.2 x 1.6 mm right angle dome lens package is excellent for network devices, consumer electronics, medical equipment, hand held products and icon/text indications.


  • 3.2 x 1.6 mm, 1.8 mm thickness
  • DC Forward current: 30 mA
  • Packaging: 2000 pcs / reel
  • Moisture sensitivity level: 3
  • RoHS compliant
